Two-photon Imaging in the Brain of a Tethered, Behaving Fly

There is a long history of putting a tethered insect on a ball to measure its movements in response to controlled sensory stimuli. As mentioned in the publication, Karl Götz and Erich Buchner had fly-on-a-ball systems working almost four decades ago. Our system uses modern image processing technology to acquire, with high temporal resolution, velocity about all axes of rotation of the ball. The first system to use optical mouse sensors came from Berthold Hedwig's lab, which used them to monitor crickets walking on a ball.

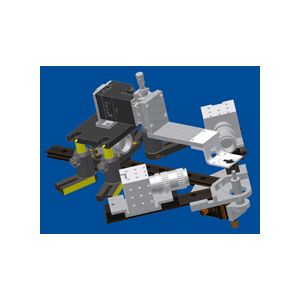

We want to provide everything you need to build a complete fly-ball-tracker system between the published paper and these files. We apologize for any missing information but will be happy to fix that if you let us know. We will improve the organization of this information in the coming weeks. Zipped Autodesk Inventor CAD files for the tracker system are available here. TreadmillSystemFinal.iam is the top-level assembly.

Computer-to-chip communication issue with Windows 7 & the latest FTDI driver (TreadmillDemo throws a "Bad Read"):

The fix is to change the BAUDRATE in line 69 of TreadmillDemo.cpp from 1250000 to 1152000. Thanks go to Armin Bahl (MPI, Martinsried) for bringing this to our attention.

Other Notes: A few people have asked what lenses and lighting we use. This is what our standard setup has (but you should be fine with alternatives too - just make sure your lens doesn't have an IR coating on it):

  1. 25mm computar c-mount lens:
  2. 2x extender:
  3. And another extension to focus the image on the chip: C-Mount Extension Tube (10mm Length) NT54-629 (on Edmund Optics)

As for the illumination, we use high-power IR LEDs from Illumination control: SLFA-850-12-2-SA-110

Old Note (July 10th, 2010): If you downloaded the CAD files before July 10th, 2010, we had accidentally included an old CAD file for the ball holder ("6mm Treadmill.ipt"). Please use the newer "6mm Treadmill Gen 2.ipt". If you have already machined a holder based on the old CAD diagram, please cut the top of the holder so that the hemispherical hole supporting the ball is only 1.25 mm deep. This is important for the ball to be seen clearly by the cameras and for stable airflow under the ball.

Software, Gerber files, and documentation to assemble the camera/optic chip system part of the ball tracker/Fly treadmill are available in this zipped file.

MATLAB code to calibrate the ball tracker using Camera3 (see paper) is available here.


The Janelia Drosophila-physiology-on-a-ball team. Standing (l-r): Michael Reiser, Gus Lott, Vivek Jayaraman. Sitting (l-r): Johannes Seelig and Eugenia Chiappe. Other contributors (not pictured here) include Nir Dutta, Jason Osborne. Photo credit: Reed George.

For inquiries, please reference:

Janelia 2010-010
