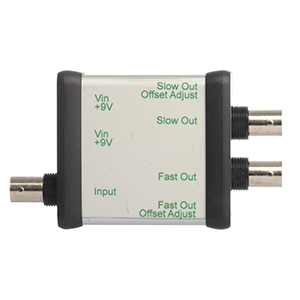

PMT Amplifier

node:body | entity_field

About the Innovation

This PMT Amplifier is used as a current-to-voltage converter (transimpedance amplifier) for laser scanning microscopy. Depending on the FET OpAMP used, the bandwidth is up to ~100 Mhz, ideal for resonant scanning and well-matched to the ScanImage5 DAQ system.  In addition to the fast output, there is a slow output (1 kHz). The slow output is used to trip the PMT power supply (important for GaAsP and other sensitive detectors).

Opportunity:

Free for Non-Profit Research and available for Commercial License; click the link at the right to obtain the designs and documentation. The click-through license grants rights to make it yourself or have it made for you.

For inquiries, please reference:

Janelia 2014-044
