Tip-Tilt-Z Sample Positioner

node:body | entity_field

About the Innovation

The Tip-Tilt-Z Sample Positioner provides automated rotation of a head-fixed rodent specimen about the anterior-posterior and medio-lateral axes for imaging or other purposes. The device also provides automated Z translation and can be customized to accommodate various head bar designs.

Rotation range, each axis: +/-10 deg

Z travel varies depending on angular orientation of sample:
         minimum Z travel: +/- 8.5 mm
         maximum Z travel : +/- 25mm

Precision actuators allow for micron-level repeatability

Opportunity:

Free to make for Non-Profit Research by downloading designs at Flintbox (see link at upper right) and rights and designs available for Commercial License.

For inquiries, please reference:

Janelia 2016-027



node:field_image | entity_field
node:field_label | entity_field

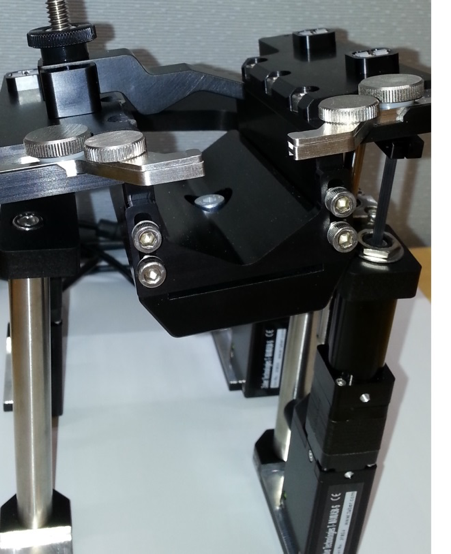

Side view
